(Two return fittings)

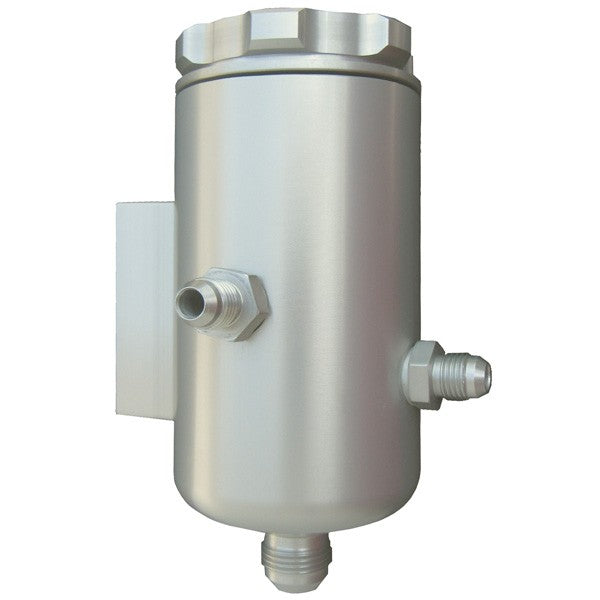

Concept One Hydroboost Remote reservoirs are designed for cars with hydroboost brake systems and have two separate return lines to eliminate brake pedal and steering wheel feedback. Inside, they make use of turbulence calming technology from the racing industry to calm the fluid that comes back to the reservoir before it goes back into the Power Steering pump. This eliminates air in the system which causes noise and heat in a power steering pump. The calmer the fluid, the quieter it will work and the better it will perform. The reservoir must be mounted higher than the power steering pump. The reservoir has a block on the back for mounting to a core support, firewall, or inner fender.

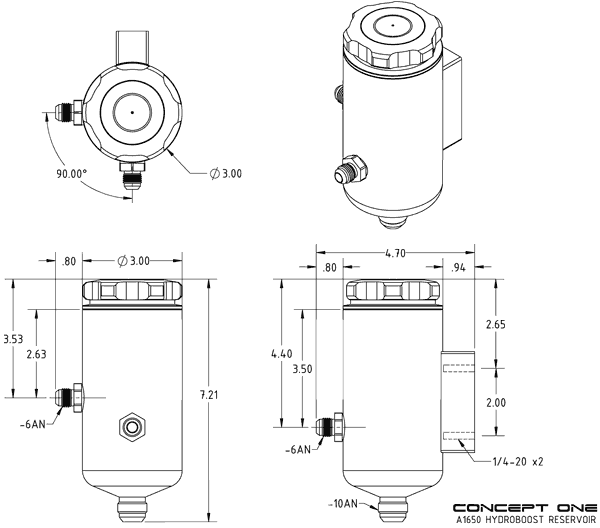

Mounting block: Two 1/4-20 threaded holes.
Return fitting (x2) (gear/rack to reservoir & hydroboost to reservoir): -6AN
Pump supply fitting (reservoir to pump): -10AN
